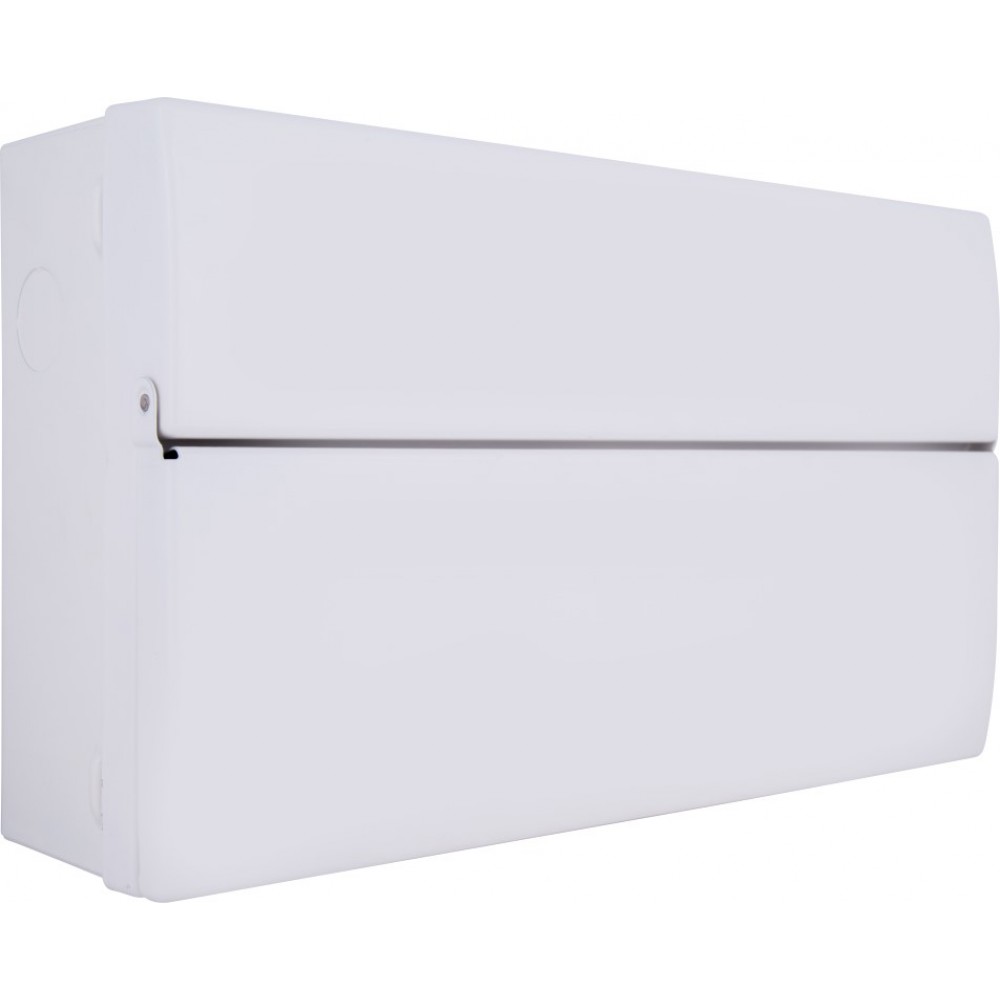

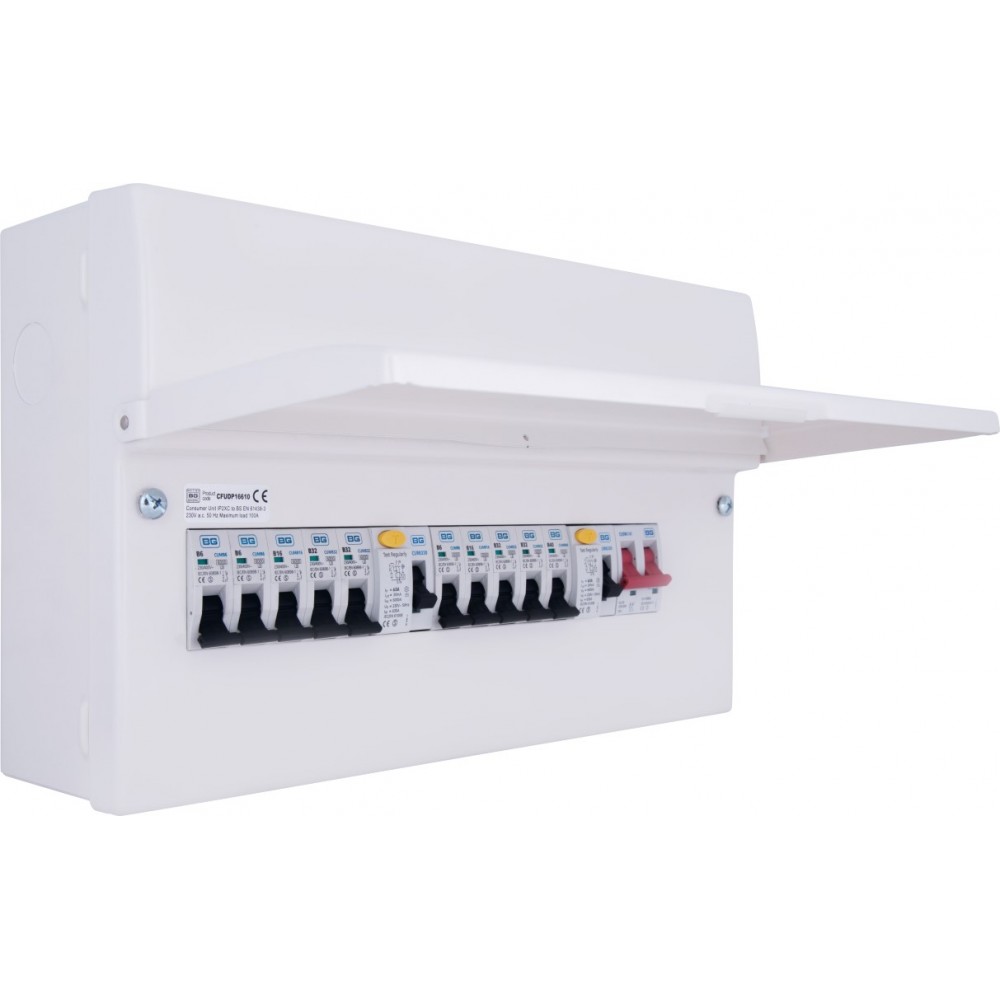

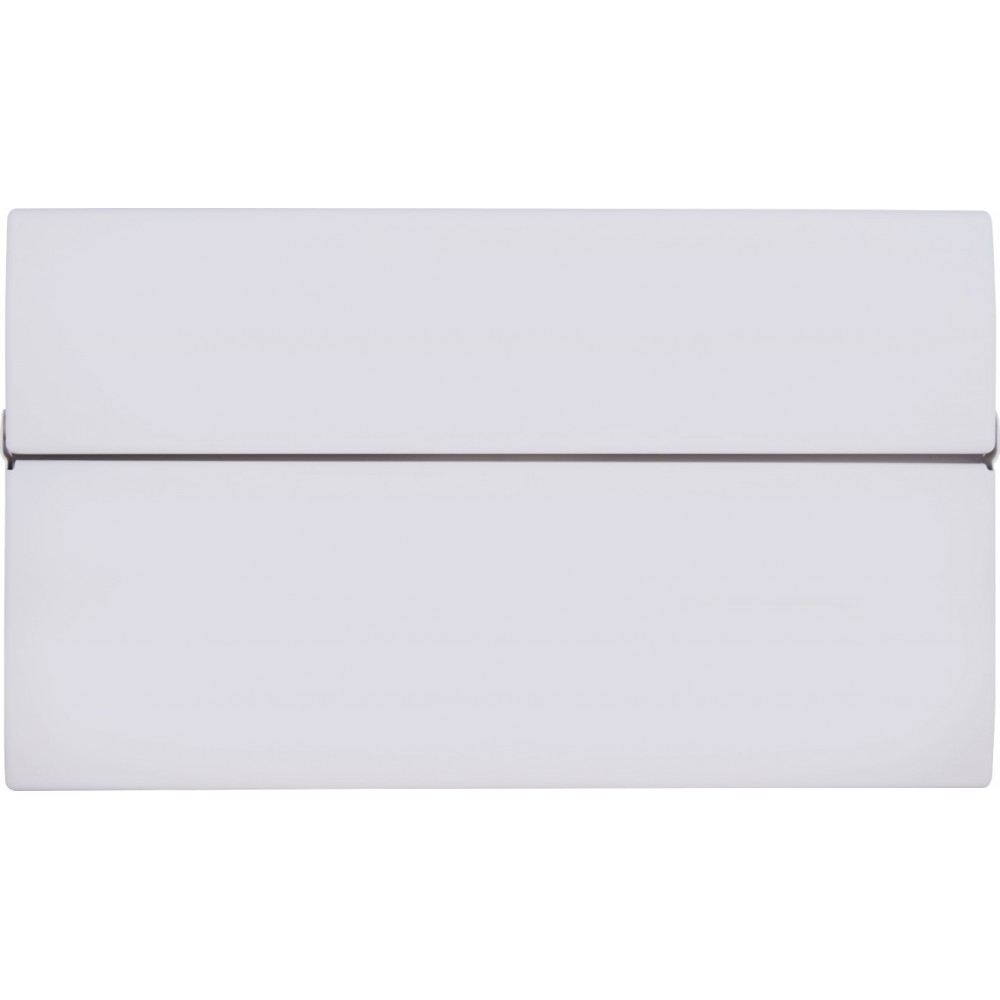

BG Metal Populated 10 Way Dual RCD Consumer Unit

100A Main Switch

2 x 63A 30mA RCDs

10 x MCBs (3 x 6A, 2 x 16A, 4 x 32A & 1 x 40A)

• New up opening front cover
• New enhanced front face profile
• Modern stylish design with a profile that matches Nexus wiring accessories
• Flexibility for maximum circuit combinations, and easy upgrades
• Fast and simple installation
• Tall 12 module consumer unit, with extra space for RCBO’s
• 10 Year Guarantee
• Consumer unit and devices tested to all relevant standards
• Option to provide high integrity solutions with standard Dual RCD consumer units
• Smooth finish enables easy cleaning
• Rigid robust construction
• Solid downward opening visor to cover devices
• Hooded trunking entry enables neat flush finish to wall
• Easy cable entry all sides and rear, via standard trunking cut outs
• Easy to fit cover provides quick fit to base and caters for uneven wall surfaces
• Large accessible wiring space provided by low base walls, raised DIN rail, wider device to terminal distance and offset main switch
• Fast release of DIN rail using key holes
• Captive backed out terminal screws provides fast connection and no loss of screws
• Ensured cable retention, due to large higher torque terminal screws and cable fitted with crimps
• One height floating busbar, can be cut to any length for any consumer unit configuration
• Terminal and busbar design enables installer to select a wider combination of protected or unprotected circuits
• Optional 5 point fixing of base caters for uneven wall surfaces
• UV stable will not discolour with sunlight or age
